Stamping metal template

Precision Industrial Metal Template for Automated Manufacturing Systems

This high-accuracy metal plate is a professionally engineered component designed for demanding industrial applications where repeatability, durability, and precision are critical. Crafted from premium alloy steel or tool-grade material, it delivers exceptional wear resistance, mechanical strength, and dimensional stability—making it ideal for integration into automated production lines, stamping dies, or modular fixturing systems. Its smooth silver-gray finish not only enhances visual appeal but also ensures consistent surface integrity under rigorous operational conditions.

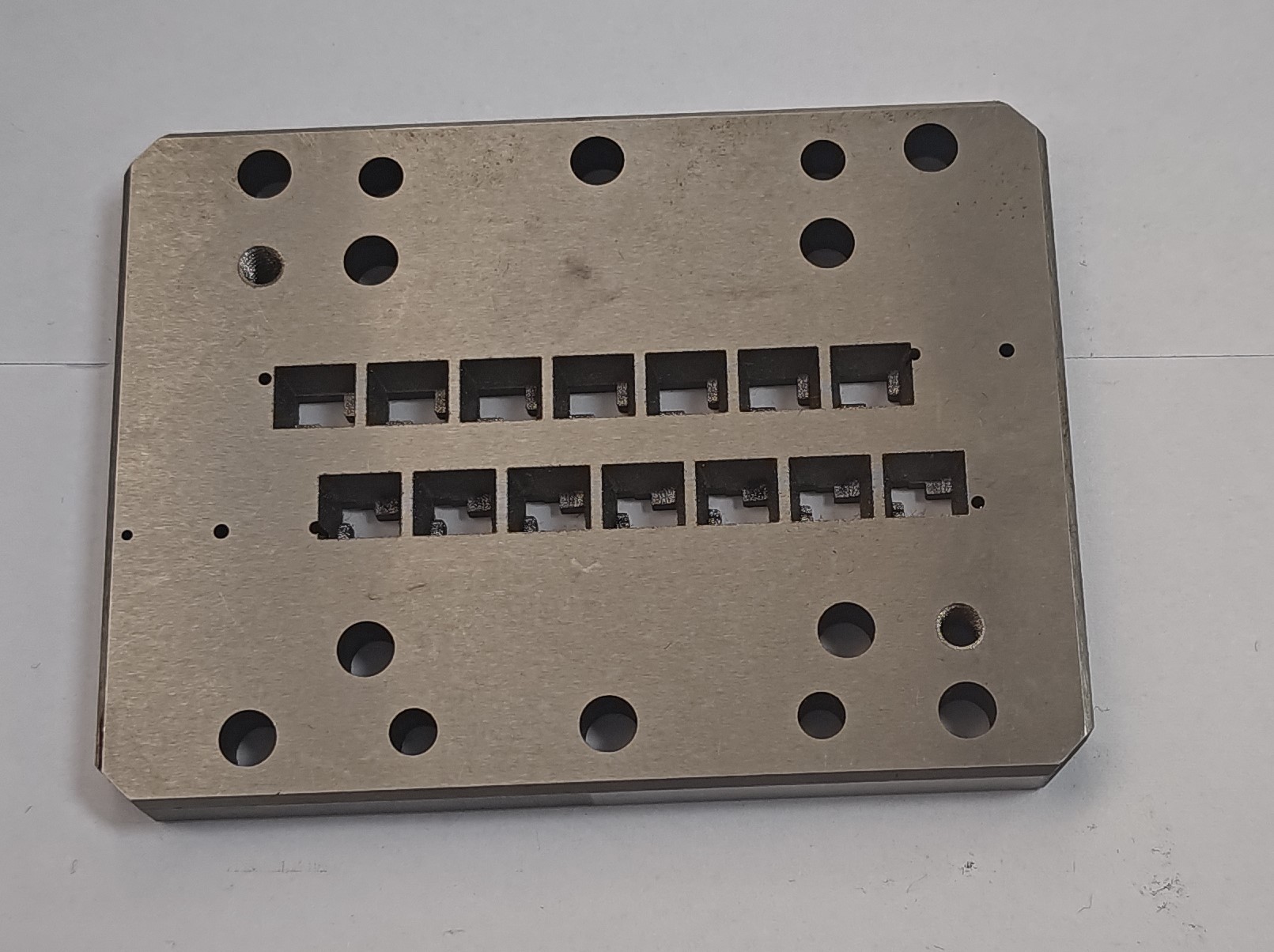

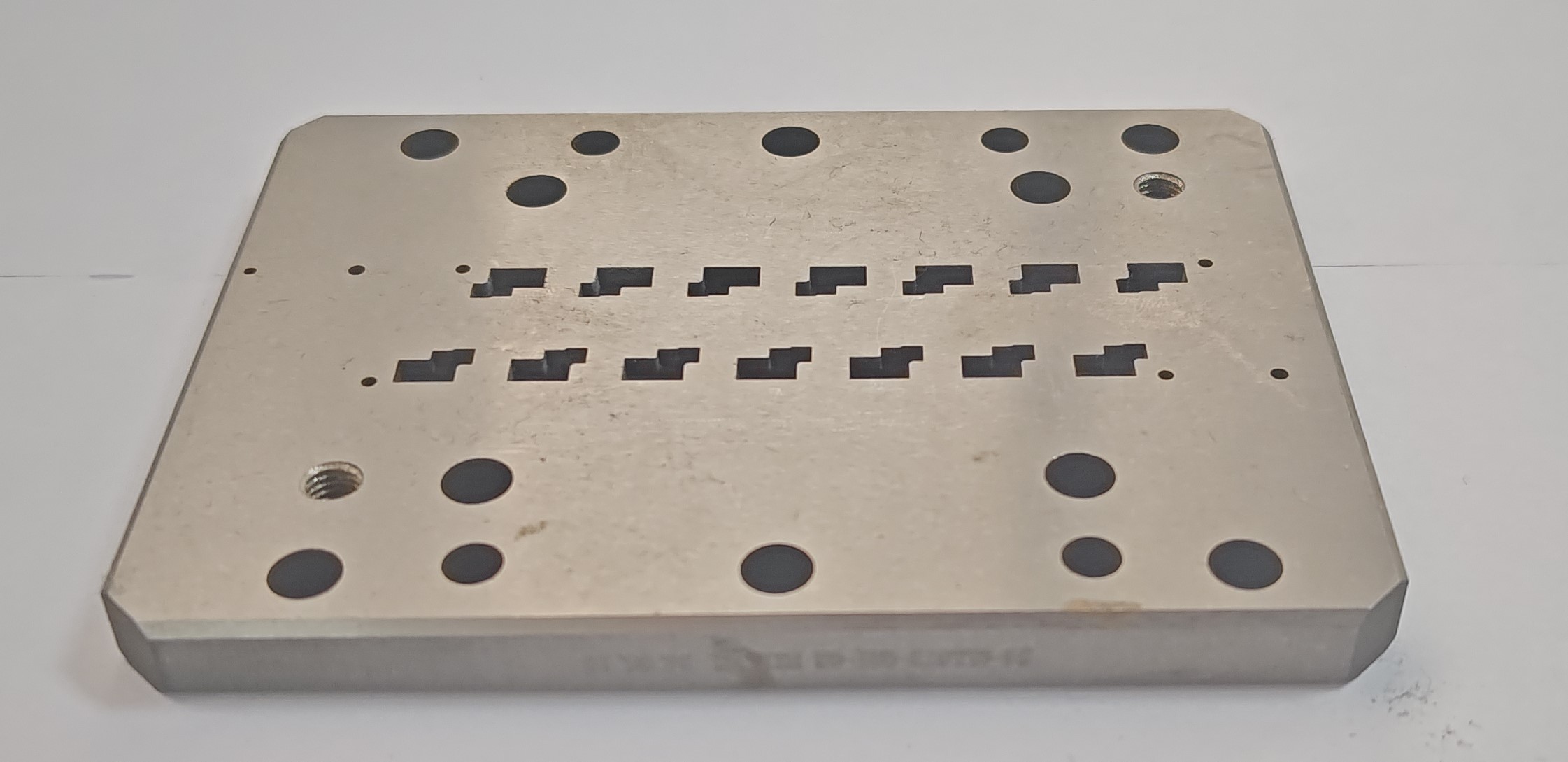

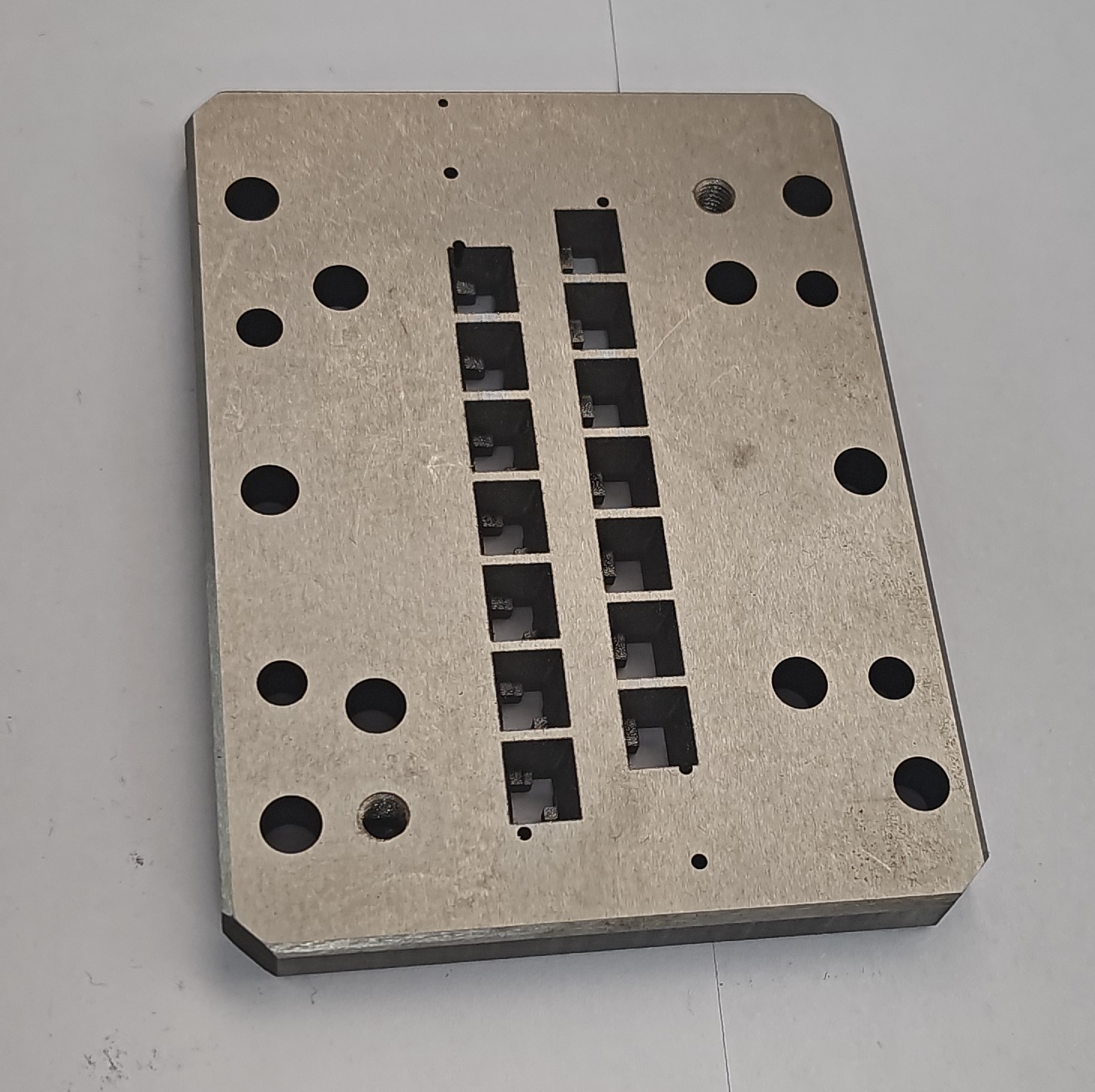

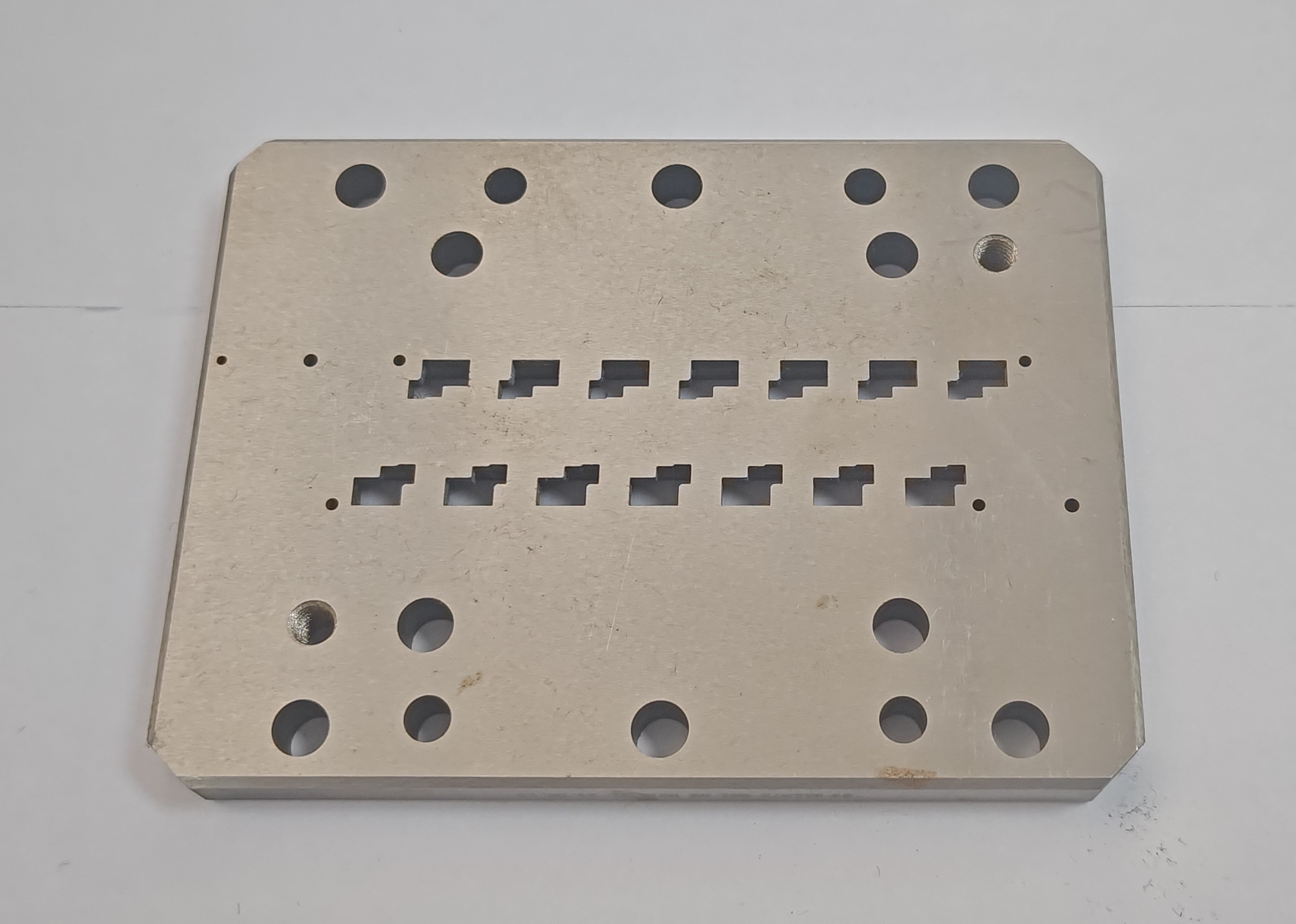

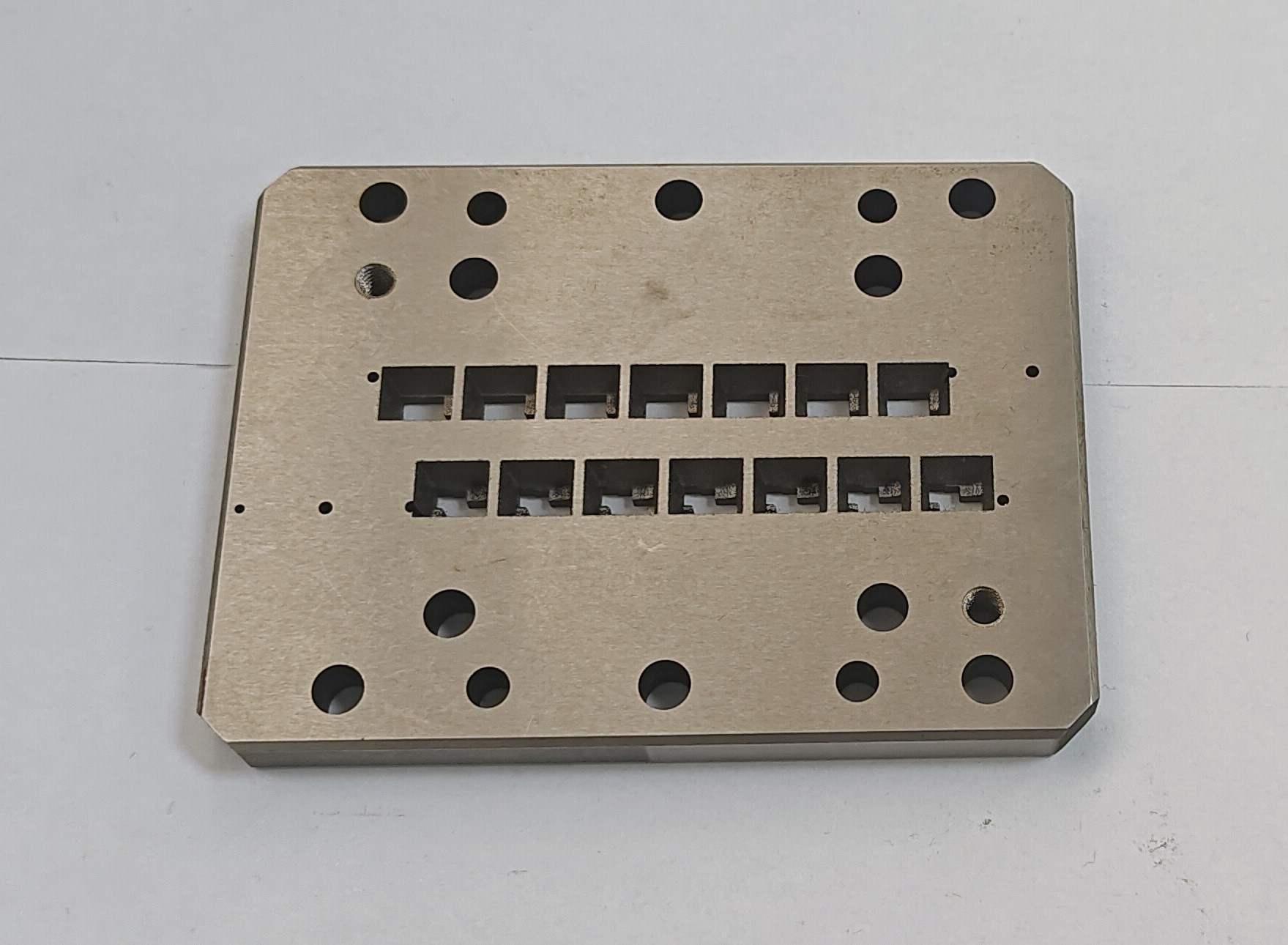

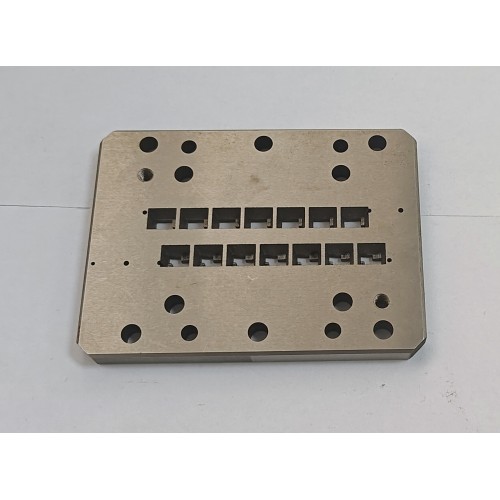

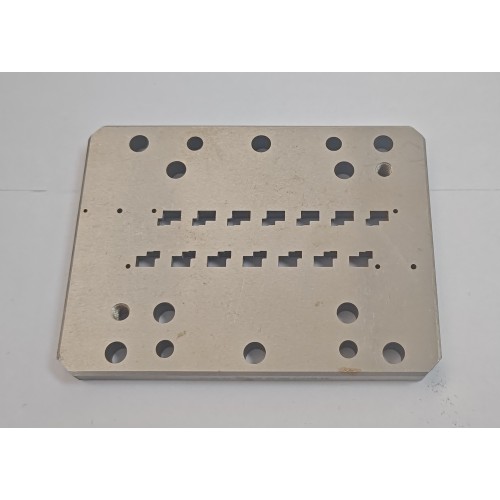

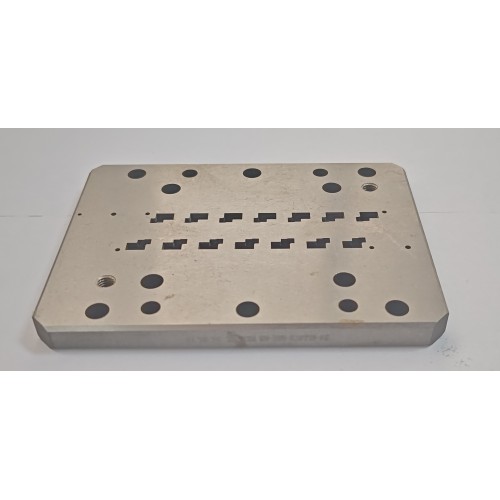

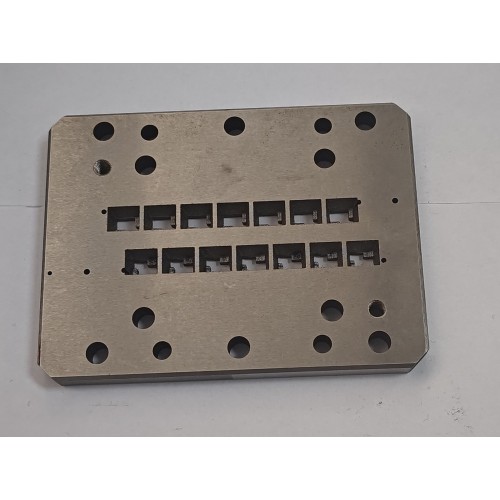

Key features include multiple CNC-machined hole arrays with strict tolerances: standardized through-holes along the perimeter provide reliable fastening points for bolts and alignment pins, while maintaining precise coaxiality across all positions. The central section houses two parallel rows of rectangular slots, each precisely fitted with specialized functional modules such as guide sliders, ejection components, or sensor mounts. Each slot edge undergoes chamfering treatment to improve assembly ease and reduce stress concentration—a subtle yet crucial detail reflecting advanced manufacturing expertise.

The template’s layout follows a modular design philosophy, offering symmetrical arrangement and scalability for future system expansion. Four calibrated reference surfaces at the corners enable accurate positioning during setup, while side-mounted process slots facilitate safe lifting and handling in industrial environments. This structured approach supports seamless integration within standardized industrial frameworks, ensuring compatibility with existing tooling and automation platforms.

Engineered for long-term reliability, this template excels in environments requiring frequent repositioning, high-cycle operations, or tight tolerance control. Whether used in die sets, robotic workstations, or precision machining fixtures, it serves as a foundational element that maintains system accuracy over time. Its robust construction and thoughtful engineering make it suitable for industries such as automotive manufacturing, aerospace component fabrication, and heavy-duty metalworking processes.

Users consistently report improved consistency in part alignment and reduced downtime due to misalignment issues when using this template in automated workflows. Many praise its ability to serve as a stable base for mounting sensors or guiding mechanisms without deformation—even after thousands of cycles. Some have noted how the standardized interface simplifies maintenance and replacement, contributing to overall efficiency gains in their production line.

Common questions often revolve around material suitability for specific environments—such as exposure to oils, chemicals, or elevated temperatures—and whether the template can be customized for non-standard configurations. While the base material offers excellent performance in typical industrial settings, modifications may be possible depending on application requirements. For optimal results, users are advised to verify compatibility with existing tooling standards and ensure proper installation procedures are followed during integration.
