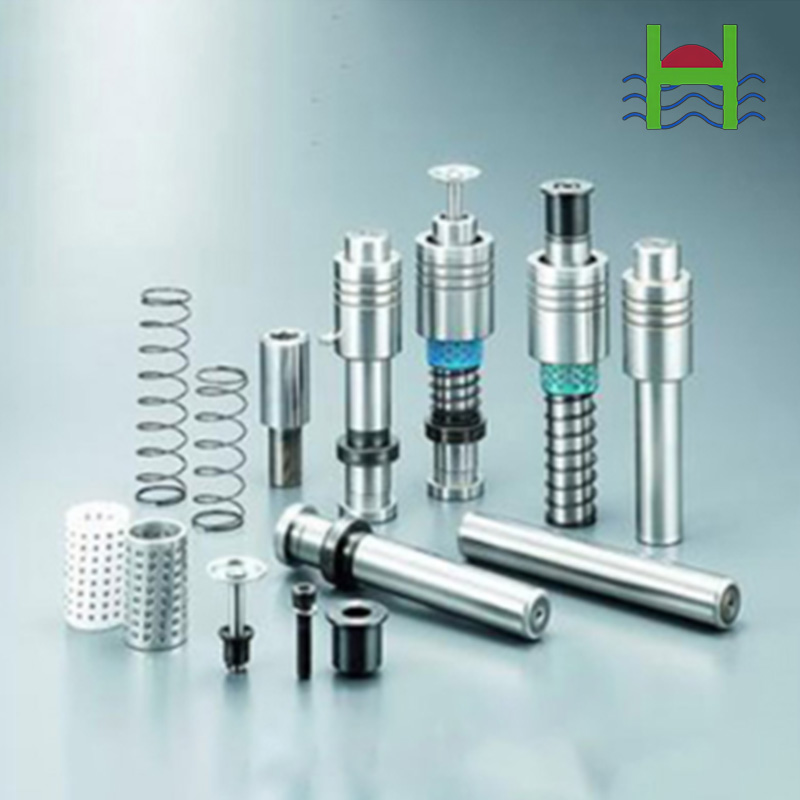

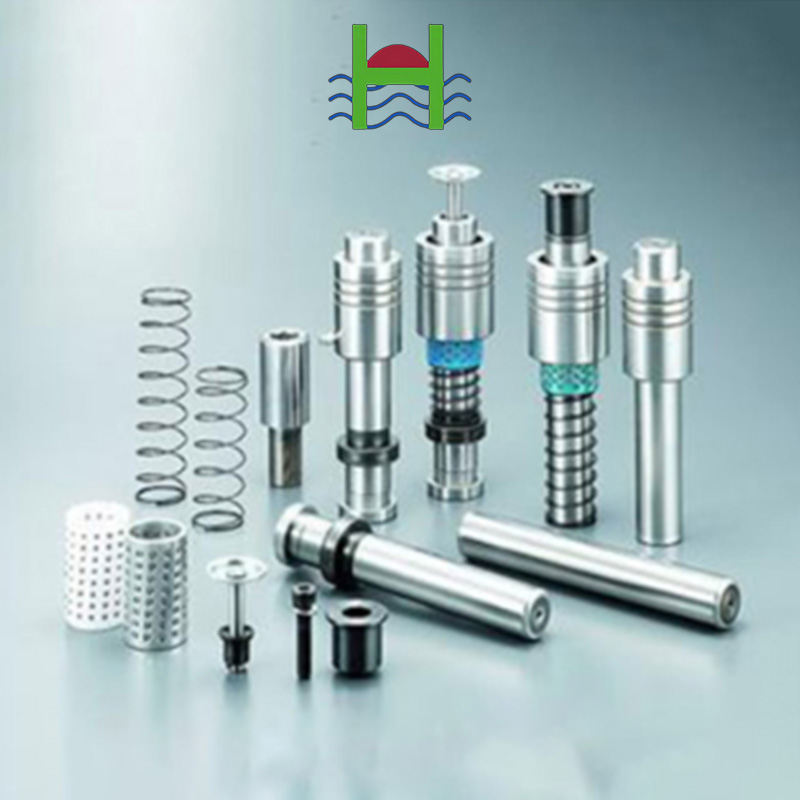

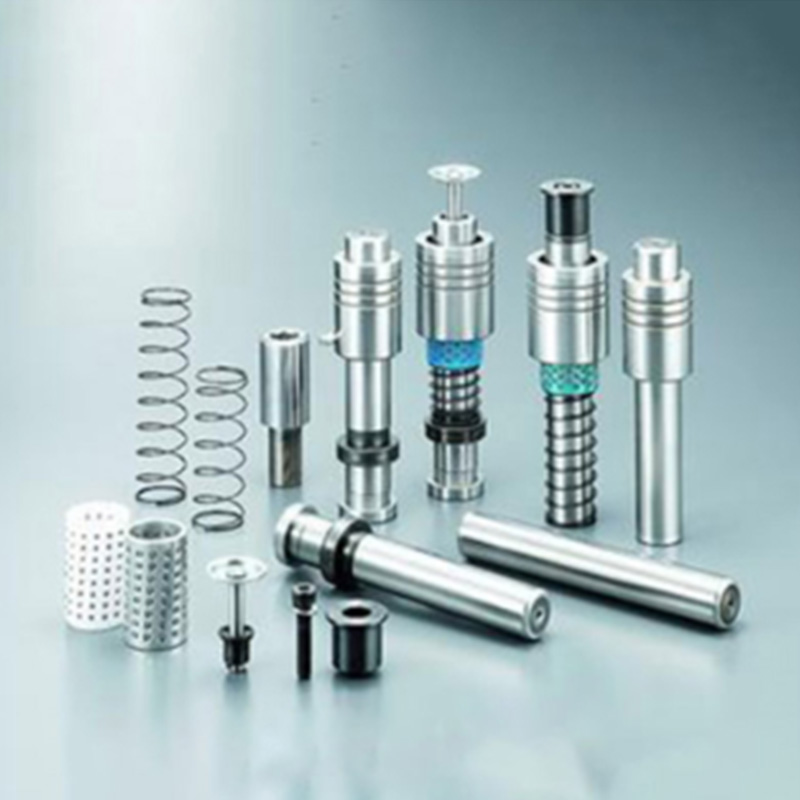

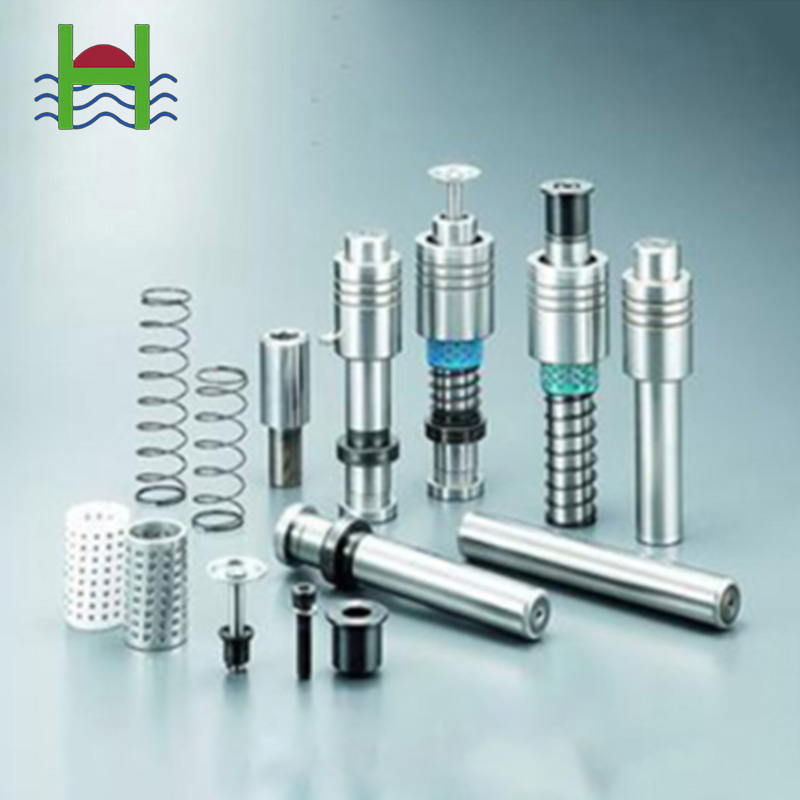

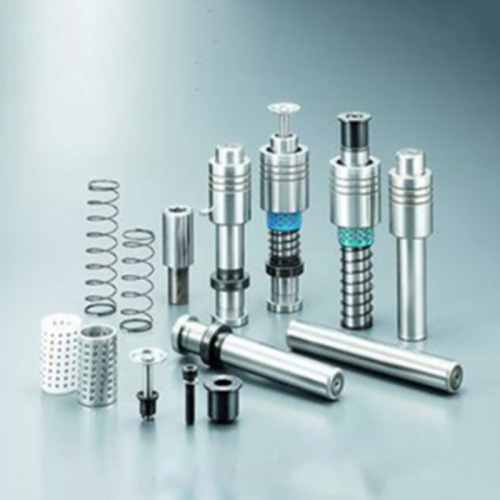

Puide Pillar: Precision Mold Guidance System for High-Performance Manufacturing Puide Pillar is a critical component in modern mold design, engineered to deliver precise alignment and reliable support between the upper and lower dies during high-pressure forming processes such as stamping, injection molding, die casting, and blow molding. As an essential guide pin assembly, it ensures consistent product quality, minimizes wear on mold components, and enhances operational safety across diverse industrial applications. Whether used in automotive stamping dies or precision plastic injection systems, this molded guide system plays a pivotal role in maintaining dimensional accuracy and extending tool life. Key Features: - Ultra-Precise Alignment: Ensures accurate mating of mold halves during closure, reducing misalignment risks and improving repeatability in mass production. - Structural Stability Under Load: Offers robust mechanical support under extreme pressures, minimizing deflection and preventing premature mold failure. - Impact Absorption Design: Functions as a cushioned interface between moving
Mold Parts, reducing shock loads and protecting delicate surfaces from damage. - Versatile Configurations: Available in cylindrical, shoulder-type, stepped, and hollow designs to suit specific mold requirements—including cooling channel integration. - Enhanced Durability Through Material Science: Manufactured from hardened carbon steel, alloy steel, or corrosion-resistant stainless steel, with heat treatment (quenching & tempering) for superior hardness and wear resistance. - Advanced Surface Finishes: Chrome plating, nitriding, or PVD coatings provide excellent anti-friction, anti-corrosion, and long-term performance benefits in harsh environments. Detailed Description: The Puide Pillar serves as the backbone of precision mold operation by maintaining exact positional control throughout each cycle. Its guiding function eliminates lateral movement between mold plates, which is vital for producing complex geometries without defects like flash, warping, or misalignment. The pillar’s structural integrity allows it to withstand repeated high-force operations while preserving its dimensional stability—especially important in continuous production lines where downtime equals lost revenue. With customizable configurations such as stepped profiles for multi-stage guidance or hollow centers for integrated coolant passages, these guide pins offer flexibility beyond standard solutions. Additionally, advanced surface treatments not only increase lifespan but also reduce maintenance intervals, making them ideal for industries demanding zero-defect manufacturing standards. Ideal Applications: This guide pin system is widely adopted in automotive body panel stamping, consumer electronics housing production, medical device injection molding, and aerospace component die casting. It supports both small-scale prototyping setups and large-scale automated presses, ensuring that every part meets tight tolerances regardless of complexity. Industries focused on sustainability benefit too—by reducing scrap rates and extending mold life, Puide Pillar contributes to leaner, more efficient manufacturing practices. User Testimonials: “Since integrating Puide Pillars into our die sets, we’ve seen a 30% reduction in misaligned parts and fewer mold repairs.” – Senior Tooling Engineer, European Automotive Supplier “These guide pins have improved our cycle consistency significantly—especially in high-speed injection molding where precision matters most.” – Production Manager, North American Plastics Manufacturer Frequently Asked Questions: What makes Puide Pillar different from conventional guide pins? Unlike basic cylindrical pins, Puide Pillar offers enhanced wear resistance through material selection and surface engineering, plus multiple structural options tailored to specific process demands—including thermal management via hollow cores. How do I choose the right type of guide pillar for my mold? Select based on your mold’s complexity: cylindrical for general use, shoulder-type for fixed-position needs, stepped for variable clearance zones, and hollow for cooling integration. Consider operating pressure, environmental conditions, and expected cycle frequency. Can it be customized for special applications? Yes—custom diameters, lengths, surface finishes, and even proprietary materials can be developed upon request to meet unique industry specifications.
